N24 Retrofit Stack Parker
The independent stack parking system

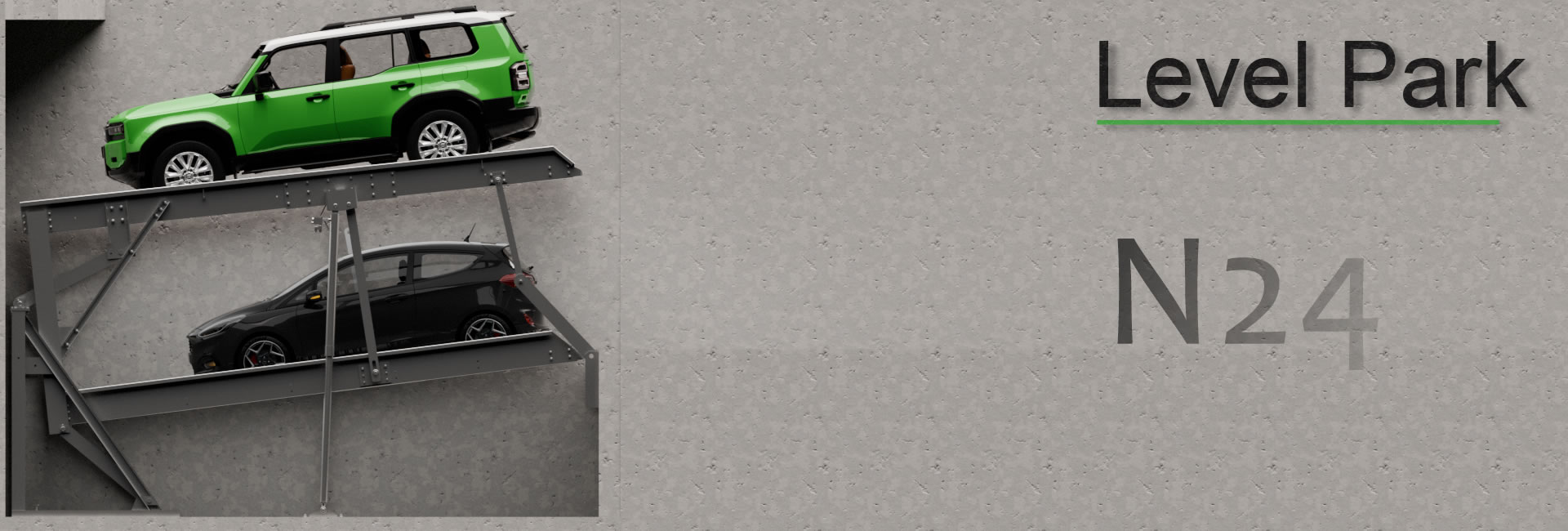

Retrofit, budgetary solution. This mechanical parking system allows two cars to be parked in the footprint of one car. This is most space-saving parker, which reduces the installation height, by inclining the platforms. Enabling any car to be retrieved independently at a ground level. A pit is required one level below the ground level. This system also comes with the option of double platform.
SPECIFICATION
- For independent parking
- Single platform (SP) for 2 cars or double platform (DP) for 4 cars, retrofit model
- Pit depth: 170 to 235 cm
- Horizontal access to the upper level, at slope to the lower level
- Vehicle dimensions: height 150 to 155 cm, length 500 cm
- Standard design: 2,000 kg for the upper parking space
- Suitable for: residential and commercial buildings, hotels as well as family homes and apartment building
For more specific information, please download a complete datasheet of the product.
