Smart 03 semi-automatic parking system with a pit
The Smart 03 is a cutting-edge mechanical parking system designed to maximize parking capacity within a compact footprint, making it an ideal solution for urban settings.

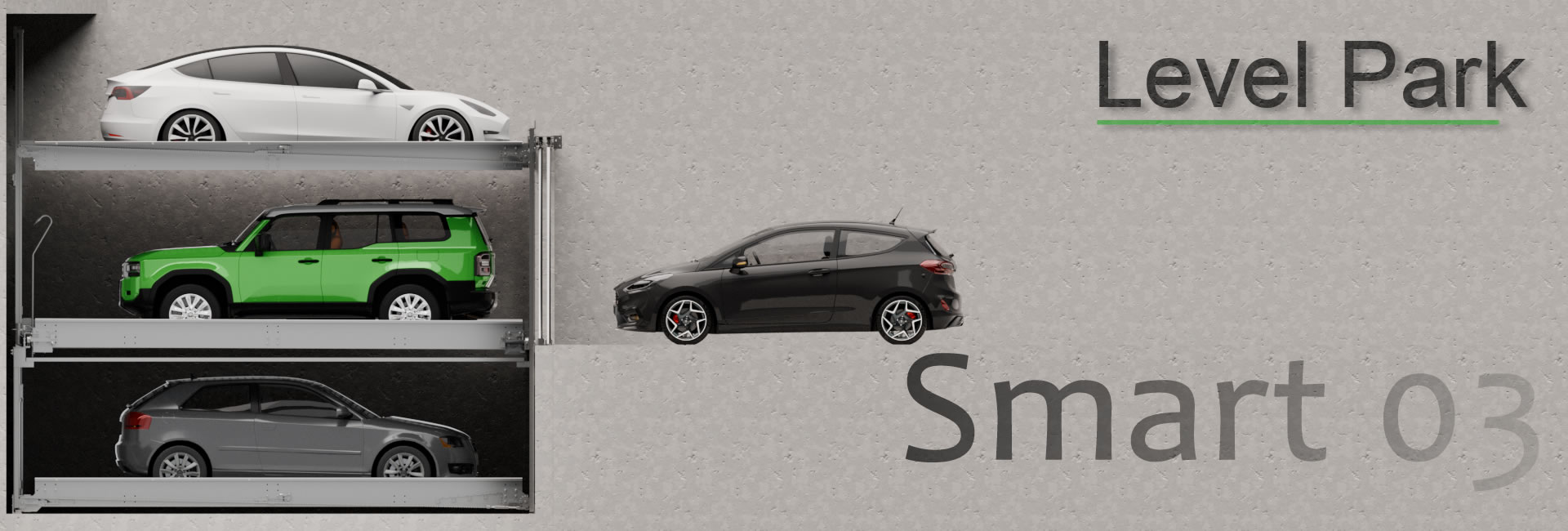

Access to the Smart 03 is provided at ground level for convenience. This advanced puzzle parking system efficiently organizes vehicles across three levels, arranged side by side in a grid layout. The parking spaces move both vertically and horizontally—either descending into a pit or ascending to the third level—ensuring smooth and quick vehicle retrieval.
By optimizing the use of floor space, this system accommodates more vehicles within the same area. It offers flexibility, with the capacity to store between 5 and 29 cars and 2 to 10 grid configurations, making it an efficient and scalable parking solution.
SPECIFICATION
- Horizontal access to the parking area
- Pit required
- Creates three parking spaces on top of each other Vehicles are lowered into the pit or transported to the third parking level
- Lower ceiling height required as vehicles are lowered into the pit
- Automated horizontal/vertical movement of vehicles
- Vehicle dimensions: height 150 to 205 cm, length 500 – 520 cm
- Standard design: 2,000 kg, optional max. 2,600 kg
- Even more parking spaces when combined with other Smart models
- Vehicles are protected against theft and vandalism thanks to electric sliding gates
- With 10 parking grids: up to 29 parking spaces possible
- Controlled by means of electronic operating aids (RFID tag, Remote Control or App)
- For basements, ground floors and upper floors
- Suitable for: Office buildings, residential/commercial buildings, underground and multi-storey car parks, car dealerships and metropolitan residential/commercial developments
For more specific information, please download a complete datasheet of the product.
