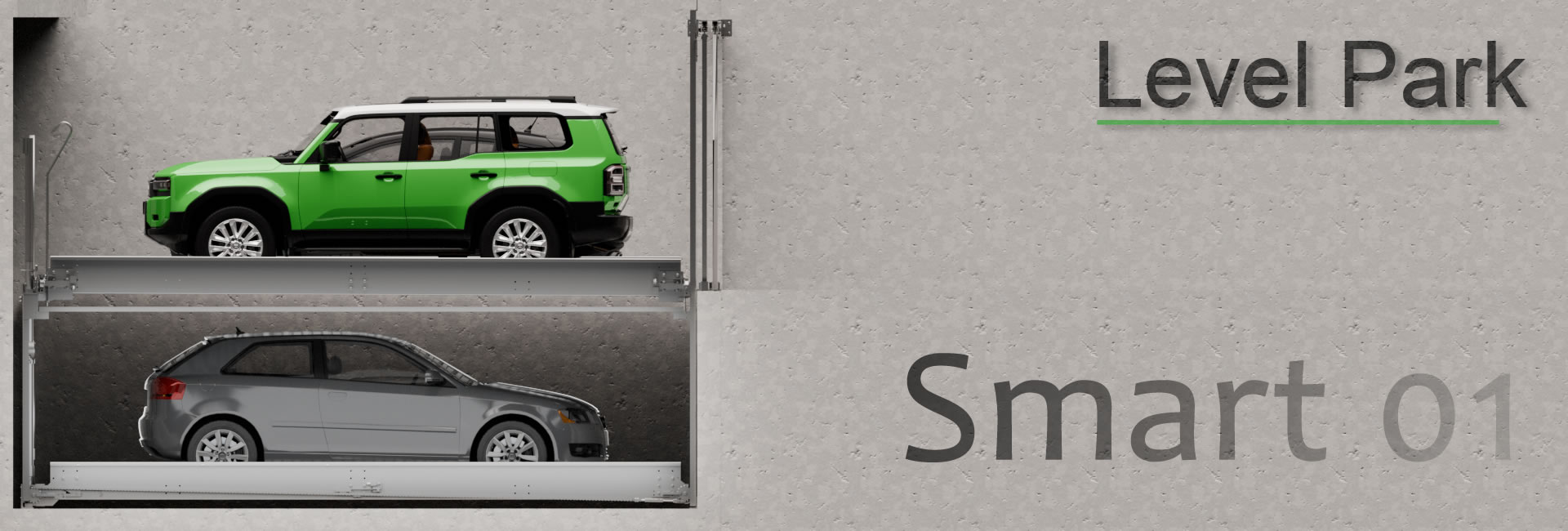

Smart 01 semi-automatic parking system with a pit
The independent semi-automatic parking system
The Smart 01 is an innovative mechanical parking solution designed for spaces with a ground level and one additional level, making it perfect for areas with limited space.
Access to the Smart 01 is provided at ground level for ease of use. This advanced puzzle parking system organizes vehicles across two levels, arranged side by side in a grid layout. The parking spaces move both vertically and horizontally, ensuring smooth and efficient vehicle placement.
With its compact design, this system can accommodate between 3 and 19 vehicles across 2 to 10 grids, making it an ideal option for optimizing parking capacity in confined spaces.
SPECIFICATION
- Horizontal access to the parking area
- Two parking spaces horizontally above each other
- Pit required
- Second car is lowered into the pit via the parking platform
- Lower ceiling height required as vehicles are lowered into the pit
- Even more parking spaces when combined with other Smart models
- Automated horizontal/vertical movement of vehicles
- Vehicle dimensions: height 150 to 245 cm, length 500 – 520 cm
- Standard design: 2,000 kg, optional max. 2,600 kg
- Vehicles are protected against vandalism and theft thanks to locked electric sliding gates
- With 10 parking grids: up to 19 parking spaces possible
- Controlled by means of electronic operating aids (RFID tag, Remote Control or App)
- For ground floors and basements
- Suitable for: Office buildings, residential/commercial buildings, underground and multi-storey car parks, car dealerships, constructions abutting property lines and metropolitan residential/commercial developments
For more specific information, please download a complete datasheet of the product.
